Designed by Kuiper

Queenply Plywood

Used by superyacht builders

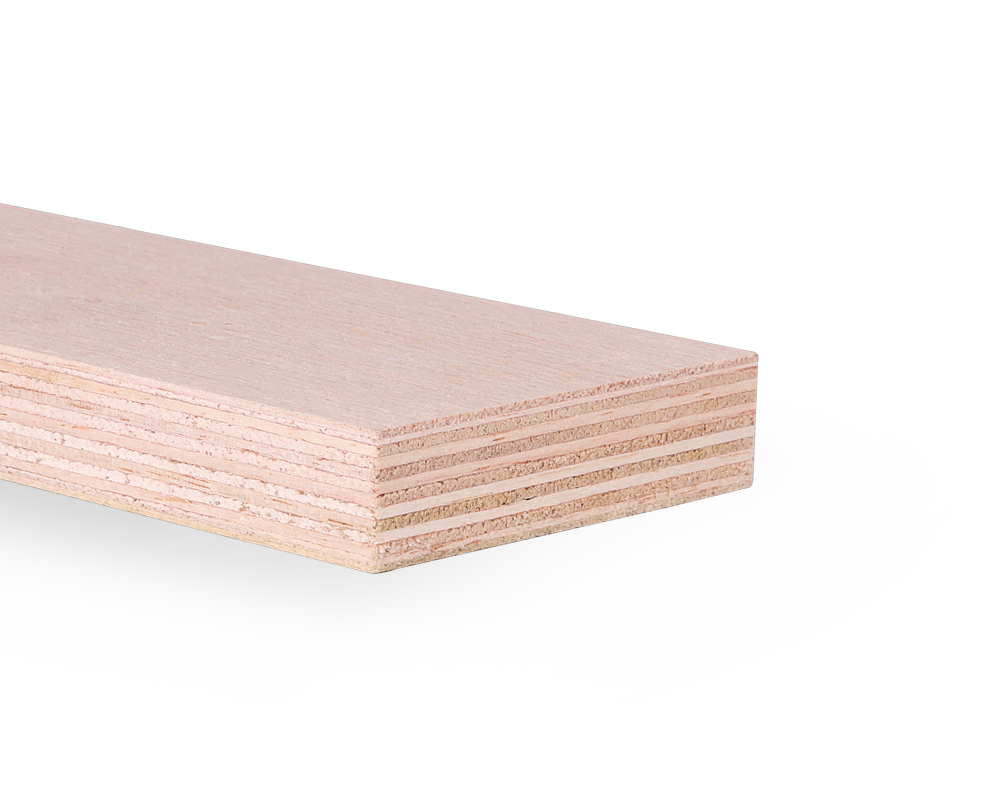

Kuiper Queenply is a renowned new lightweight plywood with multiple layer construction.
Density: 350 kg m3
Glue type: Moisture resistant

CARB EPA (Under Application)

Characteristic

Weight per m3

Weight of 15mm

Layers 15mm

Gaps

Second layer

Glue type

Emission

Sustainability

Queenply

350 kg/m3

5,25 kg/m2

11 layers

Closed

Class 1

E0.5

FSC Possible (Plantation)

Poplar

450 kg/m3 (+28,5%)

6,30 kg/m2 (+20,0%)

7 layers

Quality dependent

Class 1

PEFC Possible (Plantation)

Ocoume

500 kg/m3 (+42,8%)

7,50 kg/m2 (+42,8%)

7 layers

Closed

AW100

FSC Possible (Natural Forest)

product sheet Queenply

Stock – Kuiper Queenply

Product discription	Thickness / mm	Dimensions	Weight / m2
Kuiper - Queenply	3 mm	250 x 122 cm	1.05 kg / m2
Kuiper - Queenply	4 mm	250 x 122 cm	1.40 kg / m2
Kuiper - Queenply	5 mm	250 x 122 cm	1.75 kg / m2
Kuiper - Queenply	6 mm	250 x 122 cm	2.10 kg / m2
Kuiper - Queenply	8 mm	250 x 122 cm	2.80 kg / m2
Kuiper - Queenply	9 mm	250 x 122 cm	3.15 kg / m2
Kuiper - Queenply	10 mm	250 x 122 cm	3.50 kg / m2
Kuiper - Queenply	12 mm	244 x 122 cm	4.20 kg / m2
Kuiper - Queenply	12 mm	250 x 122 cm	4.20 kg / m2
Kuiper - Queenply	15 mm	244 x 122 cm	5.25 kg / m2
Kuiper - Queenply	15 mm	250 x 122 cm	5.25 kg / m2
Kuiper - Queenply	18 mm	244 x 122 cm	6.30 kg / m2
Kuiper - Queenply	18 mm	250 x 122 cm	6.30 kg / m2
Kuiper - Queenply	20 mm	250 x 122 cm	7.00 kg / m2
Kuiper - Queenply	22 mm	250 x 122 cm	7.70 kg / m2

Guarantees and options

Guaranteed final thickness
At Kuiper Holland we understand the extreme importance of precision in yacht building. Our Basic panels will be delivered in the exact final thickness you specify.

Unlimited customization
The Basic range as listed in this brochure can be expanded at will by choosing from a large number of customization options including: half-lap joints, priming or finish lacquering, cut-to-size, additional HPL or veneer layers custom made sandwich panel.
